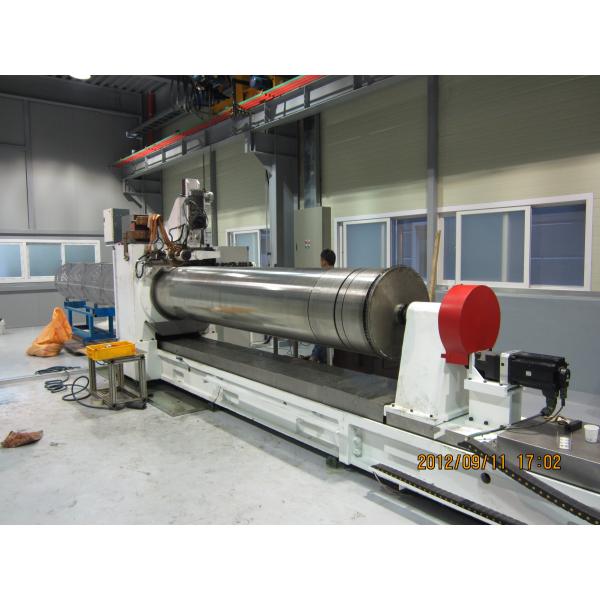

Wrapped Wedge Wire Screen Machine 200KVA Rated Capacity Servo Motor Drives
Wedge wire screen welding machines adopts resistance welding fundamental.
Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without st
wedge wire screen mesh welding machine
Usage: welding wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration mesh, water well screen etc.opping the machine.
| No. |
ITEM |
Data |
| 1 |
Diameter of screen |
Min.300mm,Max.1000 |
| 2 |
Max.Length of filter tube |
4000mm |
| 3 |
Rod and wire diamter |
1.2 to 3mm(profile wire) |
| 4 |
Material |
Carbon steel,stainless steel |
| 5 |
Servo motor |
Two sets:7KW,One set:5KW |
| 6 |
Power of welding Transformer |
200kva |
| 7 |
Welding speed |
6-30rpm |
| 8 |
Slot |
0.2-16mm |
| 9 |
Precision of slot |
+/-0.03mm |
| 10 |
Gross weight |
12 Ton |
| 11 |
Outside Dimension |
L13000mm*W1500mm*H2100mm
|
HWJ1000 Monopoly Of Sale Wedge Wire Screen Machine/Wedge Wire Screen Stainless Steel
our customer
HWJ1000 Wrap wire screen welding machine With Double Bearings

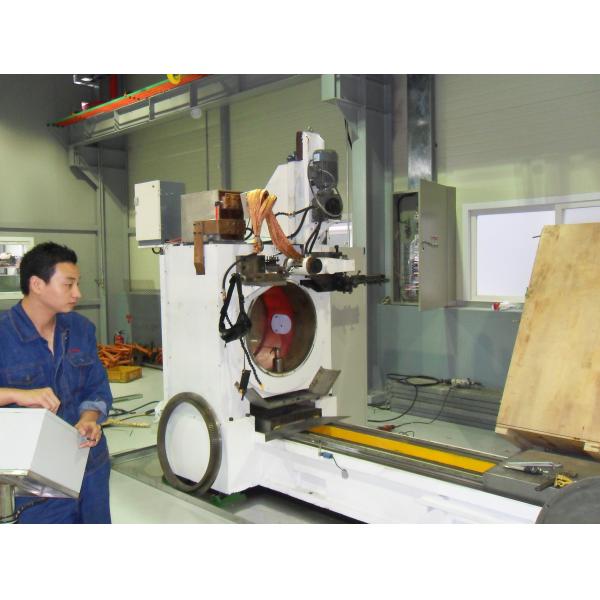

wedge wire water well screen welding machine
The wedge wire water well screen welding machine is special for welding wedge wire screen (mesh), water well screen (mesh), Vee-wire screen (mesh) for any filtering purpose in chemistry, mining industry and enviromental protection industry, etc.
4. Features and advantages
A. low noise
B. less power consumption
C. safety
D. easy to operate
E. high welding precision
After-Sales Service
1. We offer installation and train the workers for the customers.
2. Guarantee time:one year since the machine was installed at buyer's factory but within 18 months against B/L date.
3. We can help design the layout of the machine placed in the factory.
Pre-Sales Service
* Inquiry and consulting support. * Sample testing support. * View our Factory.
After-sales service: We offer installation and train the workers for the customers.
Our guarantee time: one year since the machine was installed at buyer's factory but within 12months against B/L date.
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request
